RocketMQ

概念

https://rocketmq.apache.org

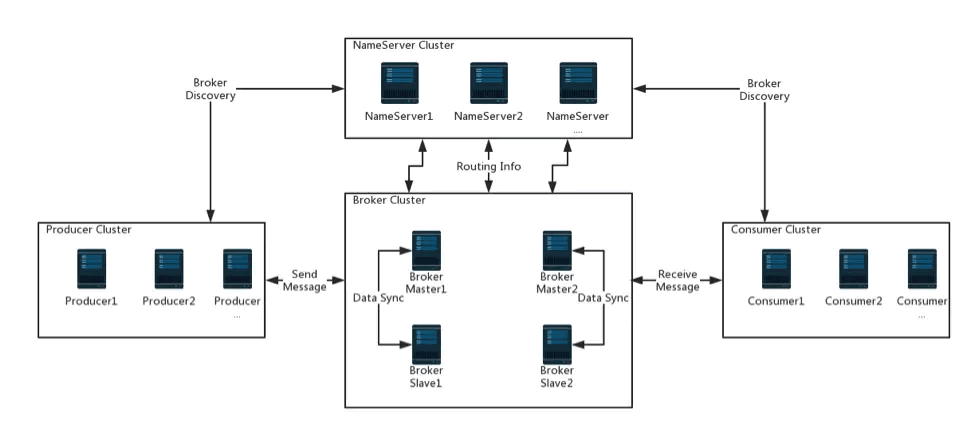

RocketMQ由以下组件组成

NameServer:提供轻量级broker路由服务
Broker:实际处理消息存储，核心组件
Producer:消息生产者集群
Consumer:消费者集群
Topic:区分消息种类，一个发送者可以发送消息给一个或多个Topic，一个消费者可以订阅一个或多个Topic消息
启动rocket服务首先需要启动nameserver

5.0引入proxy，客户端与proxy直接交互，proxy再与nameserver broker交互

搭建

安装

useradd rocket
passwd rocket
groupadd mq
usermod -g mq rocket
mkdir -p /home/rocket
chown rocket:mq /home/rocket
下载zip解压，把...bin-release放到rocket文件夹
添加环境变量
vi ~/.bash_profile
export ROCKETMQ_HOME=/home/rocket/rocketmq-all-5.1.1-bin-release
PATH=$ROCKETMQ_HOME/bin:$JAVA_HOME...
export PATH
执行下面让环境变量生效
source ~/.bash_profile

启动

启动nameserver
vi runserver.sh
调整JVM内存
JAVA_OPT="${JAVA_OPT} -server -Xms512m -Xmx512m -Xmn256m -XX:Meta...."
nohup sh bin/mqnamesrv &
启动broker
vi runbroker.sh
调整JVM内存
JAVA_OPT="${JAVA_OPT} -server -Xms512m -Xmx512m -Xmn256m"
修改conf/broker.conf，最下面添加
autoCreateTopicEnable=true
启动
// nohup sh mqbroker &
nohup sh mqbroker -n 192.168.31.8:9876 --enable-proxy &

关闭

sh bin/mqshutdown broker
sh bin/mqshutdown namesrv

管理控制台

https://github.com/apache/rocketmq-dashboard

mvn clean package -Dmaven.test.skip=true
java -jar target/rocketmq-dashboard-1.0.1-SNAPSHOT.jar

Docker
docker pull apacherocketmq/rocketmq-dashboard:latest
docker run -d --name rocketmq-dashboard -e "JAVA_OPTS=-Drocketmq.namesrv.addr=192.168.31.8:9876" -p 18080:8080 -t apacherocketmq/rocketmq-dashboard:latest

http://192.168.31.8:18080

生产者

消息发送

正常发送：发送消息到broker还需等待broker返回信息，然后代码才能继续执行

异步发送：发送消息到broker后不管，继续执行代码。之后broker会回调生产者的方法，告诉生产者是否发送成功

正常发送
public static void main(String[] args) throws ClientException {
        // 接入点地址，需要设置成Proxy的地址和端口列表，一般是xxx:8081;xxx:8081。
        String endpoint = "192.168.31.8:8080";
        // 消息发送的目标Topic名称，需要提前创建。
        String topic = "TestTopic";
        // 权限
        String accessKey = "yourAccessKey";
        String secretKey = "yourSecretKey";
        SessionCredentialsProvider sessionCredentialsProvider =
                new StaticSessionCredentialsProvider(accessKey, secretKey);
        ClientServiceProvider provider = ClientServiceProvider.loadService();
        ClientConfigurationBuilder builder = ClientConfiguration.newBuilder().setEndpoints(endpoint);
        ClientConfiguration configuration = builder.build();
        // 初始化Producer时需要设置通信配置以及预绑定的Topic。
        Producer producer = provider.newProducerBuilder()
                .setTopics(topic)
                .setClientConfiguration(configuration)
                .build();
        // 普通消息发送。
        Message message = provider.newMessageBuilder()
                .setTopic(topic)
                // 设置消息索引键，可根据关键字精确查找某条消息。
                .setKeys("messageKey")
                // 设置消息Tag，用于消费端根据指定Tag过滤消息。
                .setTag("messageTag")
                // 消息体。
                .setBody("messageBody".getBytes())
                .build();
        try {
            // 发送消息，需要关注发送结果，并捕获失败等异常。
            SendReceipt sendReceipt = producer.send(message);
            producer.send(message);
            logger.info("Send message successfully, messageId={}", sendReceipt.getMessageId());
        } catch (ClientException e) {
            logger.error("Failed to send message", e);
        }
        // producer.close();
    }

异步发送
private static final Logger logger = LoggerFactory.getLogger(AsyncProducerExample.class);
    public static void main(String[] args) throws ClientException, InterruptedException, IOException {
        // 接入点地址，需要设置成Proxy的地址和端口列表，一般是xxx:8081;xxx:8081。
        String endpoint = "192.168.31.8:8080";
        // 消息发送的目标Topic名称，需要提前创建。
        String topic = "TestTopic";
        // 权限
        String accessKey = "yourAccessKey";
        String secretKey = "yourSecretKey";
        SessionCredentialsProvider sessionCredentialsProvider =
                new StaticSessionCredentialsProvider(accessKey, secretKey);
        ClientServiceProvider provider = ClientServiceProvider.loadService();
        ClientConfigurationBuilder builder = ClientConfiguration.newBuilder().setEndpoints(endpoint);
        ClientConfiguration configuration = builder.build();
        // 初始化Producer时需要设置通信配置以及预绑定的Topic。
        Producer producer = provider.newProducerBuilder()
                .setTopics(topic)
                .setClientConfiguration(configuration)
                .build();
        // 普通消息发送。
        Message message = provider.newMessageBuilder()
                .setTopic(topic)
                // 设置消息索引键，可根据关键字精确查找某条消息。
                .setKeys("key2")
                // 设置消息Tag，用于消费端根据指定Tag过滤消息。
                .setTag("tag2")
                // 消息体。
                .setBody("async message".getBytes())
                .build();
        // 创建自定义线程池接收回调
        final CompletableFuture<SendReceipt> future = producer.sendAsync(message);
        ExecutorService sendCallbackExecutor = Executors.newCachedThreadPool();
        future.whenCompleteAsync((sendReceipt, throwable) -> {
            if (null != throwable) {
                logger.error("Failed to send message", throwable);
                // Return early.
                return;
            }
            logger.info("Send message successfully, messageId={}", sendReceipt.getMessageId());
        }, sendCallbackExecutor);
        // Block to avoid exist of background threads.
        Thread.sleep(Long.MAX_VALUE);
        // Close the producer when you don't need it anymore.
        producer.close();
    }

消费者

推模式(push)：broker收到消息主动推送给消费者
拉模式(pull)：消费者主动去broker拉消息

push
	private static final Logger logger = LoggerFactory.getLogger(PushConsumerExample.class);
    public static void main(String[] args) throws ClientException, IOException, InterruptedException {
        final ClientServiceProvider provider = ClientServiceProvider.loadService();
        // 接入点地址，需要设置成Proxy的地址和端口列表，一般是xxx:8081;xxx:8081。
        String endpoints = "192.168.31.8:8080";
        ClientConfiguration clientConfiguration = ClientConfiguration.newBuilder()
                .setEndpoints(endpoints)
                .build();
        // 订阅消息的过滤规则，表示订阅所有Tag的消息。
        String tag = "*";
        FilterExpression filterExpression = new FilterExpression(tag, FilterExpressionType.TAG);
        // 为消费者指定所属的消费者分组，Group需要提前创建。
        String consumerGroup = "zzzGroup";
        // 指定需要订阅哪个目标Topic，Topic需要提前创建。
        String topic = "TestTopic";
        // 初始化PushConsumer，需要绑定消费者分组ConsumerGroup、通信参数以及订阅关系。
        PushConsumer pushConsumer = provider.newPushConsumerBuilder()
                .setClientConfiguration(clientConfiguration)
                // 设置消费者分组。
                .setConsumerGroup(consumerGroup)
                // 设置预绑定的订阅关系。
                .setSubscriptionExpressions(Collections.singletonMap(topic, filterExpression))
                // 设置消费监听器。
                .setMessageListener(messageView -> {
                    // 处理消息并返回消费结果。
                    logger.info("Consume message successfully, messageId={}", messageView.getMessageId());
                    return ConsumeResult.SUCCESS;
                })
                .build();
        Thread.sleep(Long.MAX_VALUE);
        // 如果不需要再使用 PushConsumer，可关闭该实例。
        // pushConsumer.close();
    }

pull
private static final Logger log = LoggerFactory.getLogger(SimpleConsumerExample.class);
    @SuppressWarnings({"resource", "InfiniteLoopStatement"})
    public static void main(String[] args) throws ClientException {
        final ClientServiceProvider provider = ClientServiceProvider.loadService();
        // Credential provider is optional for client configuration.
        String accessKey = "yourAccessKey";
        String secretKey = "yourSecretKey";
        SessionCredentialsProvider sessionCredentialsProvider =
            new StaticSessionCredentialsProvider(accessKey, secretKey);

        String endpoints = "foobar.com:8080";
        ClientConfiguration clientConfiguration = ClientConfiguration.newBuilder()
            .setEndpoints(endpoints)
            .setCredentialProvider(sessionCredentialsProvider)
            .build();
        String consumerGroup = "yourConsumerGroup";
        Duration awaitDuration = Duration.ofSeconds(30);
        String tag = "yourMessageTagA";
        String topic = "yourTopic";
        FilterExpression filterExpression = new FilterExpression(tag, FilterExpressionType.TAG);
        // In most case, you don't need to create too many consumers, singleton pattern is recommended.
        SimpleConsumer consumer = provider.newSimpleConsumerBuilder()
            .setClientConfiguration(clientConfiguration)
            // Set the consumer group name.
            .setConsumerGroup(consumerGroup)
            // set await duration for long-polling.
            .setAwaitDuration(awaitDuration)
            // Set the subscription for the consumer.
            .setSubscriptionExpressions(Collections.singletonMap(topic, filterExpression))
            .build();
        // Max message num for each long polling.
        int maxMessageNum = 16;
        // Set message invisible duration after it is received.
        Duration invisibleDuration = Duration.ofSeconds(15);
        // Receive message, multi-threading is more recommended.
        do {
            final List<MessageView> messages = consumer.receive(maxMessageNum, invisibleDuration);
            log.info("Received {} message(s)", messages.size());
            for (MessageView message : messages) {
                final MessageId messageId = message.getMessageId();
                try {
                    consumer.ack(message);
                    log.info("Message is acknowledged successfully, messageId={}", messageId);
                } catch (Throwable t) {
                    log.error("Message is failed to be acknowledged, messageId={}", messageId, t);
                }
            }
        } while (true);
        // Close the simple consumer when you don't need it anymore.
        // consumer.close();
    }

特性

顺序消息

创建topic

sh bin/mqadmin updatetopic -n localhost:9876 -t FIFOTopic -b localhost:10911  -a +message.type=FIFO

和普通消息发送相比，顺序消息发送必须要设置消息组。

Message message = provider.newMessageBuilder()
    .setTopic("FIFOTopic")
    // 设置消息索引键，可根据关键字精确查找某条消息。
    .setKeys("fifoKey")
    // 设置消息Tag，用于消费端根据指定Tag过滤消息。
    .setTag("test")
    //设置顺序消息的排序分组，该分组尽量保持离散，避免热点排序分组。
    .setMessageGroup("fifoGroup001")
    // 消息体。
    .setBody("messageBody".getBytes())
    .build();
SendReceipt sendReceipt = producer.send(message);

消费顺序消息时，需要确保当前消费者分组是顺序投递模式，否则仍然按并发乱序投递。

//消费示例一：使用PushConsumer消费顺序消息，只需要在消费监听器处理即可。
MessageListener messageListener = new MessageListener() {
    @Override
    public ConsumeResult consume(MessageView messageView) {
        System.out.println(messageView);
        //根据消费结果返回状态。
        return ConsumeResult.SUCCESS;
    }
};

//消费示例二：使用SimpleConsumer消费顺序消息，主动获取消息进行消费处理并提交消费结果。
//需要注意的是，同一个MessageGroup的消息，如果前序消息没有消费完成，再次调用Receive是获取不到后续消息的。
List<MessageView> messageViewList = null;
try {
    messageViewList = simpleConsumer.receive(10, Duration.ofSeconds(30));
    messageViewList.forEach(messageView -> {
        System.out.println(messageView);
        //消费处理完成后，需要主动调用ACK提交消费结果。
        try {
            simpleConsumer.ack(messageView);
        } catch (ClientException e) {
            e.printStackTrace();
        }
    });
} catch (ClientException e) {
    //如果遇到系统流控等原因造成拉取失败，需要重新发起获取消息请求。
    e.printStackTrace();
}

发送到同一队列

public static void main(String[] args) throws ClientException {
        try {
            DefaultMQProducer producer = new DefaultMQProducer("zzzFIFOGroup");
            producer.setNamesrvAddr("192.168.31.8:9876");
            producer.start();
            for (int i = 0; i < 10; i++) {
                int orderId = i;
                for (int j = 0; j < 5; j++) {
                    Message message = new Message("FIFOTopic", "order_" + orderId, "KEY" + orderId,
                            ("order:" + orderId + " step:" + j).getBytes());
                    SendResult sendResult = producer.send(message, new MessageQueueSelector() {
                        @Override
                        public MessageQueue select(List<MessageQueue> list, Message message, Object o) {
                            Integer id = (Integer) o;
                            int index = id % list.size();
                            return list.get(index);
                        }
                    }, orderId);
                    System.out.println(sendResult);
                }
            }

        } catch (Exception e) {
            e.printStackTrace();
        }
    }

使用MessageListenerOrderly消费

public static void main(String[] args) throws ClientException, IOException, InterruptedException, MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("zzzFIFOGroup");
        consumer.setNamesrvAddr("192.168.31.8:9876");
        consumer.subscribe("FIFOTopic", "*");
        consumer.registerMessageListener(new MessageListenerOrderly() {
            @Override
            public ConsumeOrderlyStatus consumeMessage(List<MessageExt> list, ConsumeOrderlyContext consumeOrderlyContext) {
                consumeOrderlyContext.setAutoCommit(true);
                for (MessageExt msg: list) {
                    System.out.println("收到的消息：" + new String(msg.getBody()));
                }
                return ConsumeOrderlyStatus.SUCCESS;
            }
        });
        consumer.start();
        Thread.sleep(Long.MAX_VALUE);
    }

过滤

tag

String tag = "tagA || tagB";
FilterExpression filterExpression = new FilterExpression(tag, FilterExpressionType.TAG);
PushConsumer pushConsumer = provider.newPushConsumerBuilder()
        .setClientConfiguration(clientConfiguration)
        // 设置预绑定的订阅关系。
        .setSubscriptionExpressions(Collections.singletonMap(topic, filterExpression))

sql

String sql = "(TAGS is not null and TAGS in ('tagA', 'tagB')) and (a is not null and a between 20 and 50)";
FilterExpression filterExpression = new FilterExpression(sql, FilterExpressionType.SQL92);

广播

消费模式分为广播模式，集群模式
rocket默认集群消费，同一个消费group下的多个consumer平摊消息队列中的消息
广播模式：同一个消费group下的多个消费者，每个都会消费消息队列中的全量消息

consumer.setMessageModel(MessageModel.BROADCASTING);

事务消息

事务监听器

public class TestTransactionListener implements TransactionListener {
     /**
      * description: 回调操作方法
      *
      * 消息预提交成功就会触发该方法的执行，用于完成本地事务
      */
    @Override
    public LocalTransactionState executeLocalTransaction(Message msg, Object arg) {
        System.out.println("预提交消息成功：" + msg);
        // 假设接收到TAGA的消息就表示扣款操作成功，TAGB的消息表示扣款失败，
        // TAGC表示扣款结果不清楚，需要执行消息回查
        if (StringUtils.equals("TAGA", msg.getTags())) {
            return LocalTransactionState.COMMIT_MESSAGE;
        } else if (StringUtils.equals("TAGB", msg.getTags())) {
            return LocalTransactionState.ROLLBACK_MESSAGE;
        } else if (StringUtils.equals("TAGC", msg.getTags())) {
            return LocalTransactionState.UNKNOW;
        }
        return LocalTransactionState.UNKNOW;
    }

    /**
     * description: 消息回查方法
     * 引发消息回查的原因最常见的有两个：
     * 1)回调操作返回UNKNWON
     * 2)TC没有接收到TM的最终全局事务确认指令
     */
    @Override
    public LocalTransactionState checkLocalTransaction(MessageExt msg) {
        System.out.println("执行消息回查" + msg.getTags());
        return LocalTransactionState.COMMIT_MESSAGE;
    }
}

生产者

public class TransactionProducer {
    public static void main(String[] args) throws Exception {
        TransactionMQProducer producer = new TransactionMQProducer("transactionGroup");
        producer.setNamesrvAddr("192.168.31.8:9876");
        // 自定义线程池
        ExecutorService executorService = new ThreadPoolExecutor(2, 5,
                100, TimeUnit.SECONDS,
                new ArrayBlockingQueue<Runnable>(2000), new ThreadFactory() {
                    @Override
                    public Thread newThread(Runnable r) {
                        Thread thread = new Thread(r);
                        thread.setName("client-transaction-msg-check-thread");
                        return thread;
                    }
                });
        // 为生产者指定一个线程池
        producer.setExecutorService(executorService);
        // 为生产者添加事务监听器
        producer.setTransactionListener(new TestTransactionListener());
        producer.start();
        String[] tags = {"TAGA","TAGB","TAGC"};
        for (int i = 0; i < 3; i++) {
            byte[] body = ("Hi," + i).getBytes();
            Message msg = new Message("TransTopic", tags[i], body);
            // 发送事务消息
            // 第二个参数用于指定在执行本地事务时要使用的业务参数
            SendResult sendResult = producer.sendMessageInTransaction(msg,null);
            System.out.println("发送结果为：" + sendResult.getSendStatus());
        }
    }
}

消费者

public class TransactionConsumer {
    public static void main(String[] args) throws ClientException, IOException, InterruptedException, MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("transactionGroup");
        consumer.setNamesrvAddr("192.168.31.8:9876");
        consumer.subscribe("TransTopic", "*");
        consumer.registerMessageListener(new MessageListenerConcurrently() {
            @Override
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> list, ConsumeConcurrentlyContext consumeConcurrentlyContext) {
                for (MessageExt msg: list) {
                    System.out.println("收到的消息：" + new String(msg.getBody()));
                }
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });
        consumer.start();
        Thread.sleep(Long.MAX_VALUE);
    }
}

其它

ACL鉴权

鉴权规则生效
vi broker.conf
aclEnable=true
配置鉴权规则
vi conf/plain_acl.yml（热加载，不需要重启）

plain_acl.yml配置:

globalWhiteRemoteAddresses:
- 10.11.192.111
- 192.168.31.*

accounts:
- accessKey: RocketMQ
  secretKey: 12345678
  whiteRemoteAddress:
  admin: false
  defaultTopicPerm: DENY
  defaultGroupPerm: SUB
  topicPerms:
  - TopicTest=PUB
  groupPerms:
  # the group should convert to retry topic
  - oms_consumer_group=DENY

- accessKey: admin
  secretKey: 12345678
  whiteRemoteAddress:
  # if it is admin, it could access all resources
  admin: true
  # RocketMQ有个bug，admin默认权限不对，所以下面默认给发布和订阅权限
  defaultTopicPerm: PUB|SUB
  defaultGroupPerm: PUB|SUB

PUB是发布权限，SUB是订阅权限、也就是消费权限，按需配置，可以分发布用户和订阅用户，也可以一个用户拥有PUB|SUB权限
用户RocketMQ普通用户，分配的权限为只能发送TopicTest的消息，其他topic无权限发送；拒绝oms_consumer_group消费组的消息消费，其他消费组默认可消费。
用户admin是管理员用户，权限最大

客户端

static RPCHook getAclRPCHook() {
    return new AclClientRPCHook(new SessionCredentials("username", "password"));
}

DefaultMQProducer producer = new DefaultMQProducer("testTopic", getAclRPCHook());
DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("testTopic", getAclRPCHook(), new AllocateMessageQueueAveragely());

消息轨迹

vi broker.conf
traceTopicEnable=true

客户端使用消息轨迹
DefaultMQProducer producer = new DefaultMQProducer("zzzFIFOGroup", true);
DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("zzzFIFOGroup", true);

springboot

<dependency>
    <groupId>org.apache.rocketmq</groupId>
    <artifactId>rocketmq-spring-boot-starter</artifactId>
    <version>2.2.2</version>
    <!-- 如果和当前项目使用的spring版本还有springBoot版本不一致，建议排除-->
    <exclusions>
        <exclusion>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </exclusion>
        <exclusion>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
        </exclusion>
        <exclusion>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </exclusion>
    </exclusions>
</dependency>

rocketmq:
  name-server: 192.168.31.8:9876
  producer:
    group: springBootGroup
    send-message-timeout: 3000 # 发送消息超时时间，单位：毫秒。默认为 3000 。
    compress-message-body-threshold: 4096 # 消息压缩阀值，当消息体的大小超过该阀值后，进行消息压缩。默认为 4 * 1024B
    max-message-size: 4194304 # 消息体的最大允许大小。。默认为 4 * 1024 * 1024B
    retry-times-when-send-failed: 2 # 同步发送消息时，失败重试次数。默认为 2 次。
    retry-times-when-send-async-failed: 2 # 异步发送消息时，失败重试次数。默认为 2 次。
    retry-next-server: false # 发送消息给 Broker 时，如果发送失败，是否重试另外一台 Broker 。默认为 false
    #access-key: # Access Key
    #secret-key: # Secret Key
    enable-msg-trace: true # 是否开启消息轨迹功能。默认为 true 开启

生产者

@RequiredArgsConstructor
@RestController
public class ProducerController {
    private final String topic = "bootTopic";
    private final RocketMQTemplate rocketMQTemplate;

    @RequestMapping("/sync")
    public String syncSend() {
        // 同步
        Message<String> message = MessageBuilder.withPayload("sync message")
                .setHeader(RocketMQHeaders.KEYS, "key_sync")
                .setHeader(RocketMQHeaders.TAGS, "tagA")
                .build();
        SendResult sendResult = rocketMQTemplate.syncSend(topic, message);
        System.out.printf("syncSend1 to topic %s sendResult=%s %n", topic, sendResult);
        return "OK";
    }

    @RequestMapping("/async")
    public String asyncSend() {
        // 异步
        Message<String> message = MessageBuilder.withPayload("async message")
                .setHeader(RocketMQHeaders.KEYS, "key_async")
                .setHeader(RocketMQHeaders.TAGS, "tagA")
                .build();
        rocketMQTemplate.asyncSend(topic, message, new SendCallback() {
            @Override
            public void onSuccess(SendResult var1) {
                System.out.printf("async onSuccess SendResult=%s %n", var1);
            }
            @Override
            public void onException(Throwable var1) {
                System.out.printf("async onException Throwable=%s %n", var1);
            }
        });
        return "OK";
    }

    @RequestMapping("/batch")
    public String batchSend() {
        // 批量
        List<Message> msgs = new ArrayList<Message>();
        for (int i = 0; i < 10; i++) {
            msgs.add(MessageBuilder.withPayload("batch message#" + i)
                    .setHeader(RocketMQHeaders.KEYS, "key_batch_" + i)
                    .setHeader(RocketMQHeaders.TAGS, "tag" + i%3).build());
        }
        SendResult result = rocketMQTemplate.syncSend(topic, msgs, 60000);
        System.out.printf("--- Batch messages send result :" + result);
        return "OK";
    }

    @RequestMapping("/fifo")
    public String fifoSend() {
        for (int i = 0; i < 10; i++) {
            Message<String> message =MessageBuilder.withPayload("batch message#" + i)
                    .setHeader(RocketMQHeaders.KEYS, "key_batch_" + i)
                    .setHeader(RocketMQHeaders.TAGS, "tag" + i%3).build();
            // 应该是会以hashKey进行取模，让需要保证顺序的消息坐落在同一个queue上，
            SendResult sr = rocketMQTemplate.syncSendOrderly(topic, message, "hashKey", 60000);
        }
        return "OK";
    }

    @RequestMapping("/transaction")
    public String transactionSend() {
        String[] tags = {"TAGA","TAGB","TAGC"};
        for (int i = 0; i < 3; i++) {
            Message<String> message =MessageBuilder.withPayload("hi! " + i)
                    .setHeader(RocketMQHeaders.KEYS, "key_batch_" + i)
                    .build();
            String destination = "TransTopic" + ":" + tags[i];
            SendResult sendResult = rocketMQTemplate.sendMessageInTransaction(
                    destination, message, destination);
            System.out.println("发送结果为：" + sendResult.getSendStatus());
        }
        return "OK";
    }
}

事务监听配置

@RocketMQTransactionListener(rocketMQTemplateBeanName = "rocketMQTemplate")
public class MyTransactionImpl implements RocketMQLocalTransactionListener {

    private ConcurrentHashMap<Object, Message> localTrans = new ConcurrentHashMap<>();

    @Override
    public RocketMQLocalTransactionState executeLocalTransaction(Message msg, Object arg) {
        Object transId = msg.getHeaders().get(RocketMQHeaders.PREFIX+RocketMQHeaders.TRANSACTION_ID);
        String destination = arg.toString();
        localTrans.put(transId, msg);
        // 这个msg的实现类是GenericMessage，里面实现了toString方法
        // 在Header中自定义的RocketMQHeaders.TAGS属性，到这里就没了。但是RocketMQHeaders.TRANSACTION_ID这个属性就还在。
        // 而message的Header里面会默认保存RocketMQHeaders里的属性，但是都会加上一个RocketMQHeaders.PREFIX前缀
        System.out.println("预提交消息成功：" + msg);
        // 转成RocketMQ的Message对象
        org.apache.rocketmq.common.message.Message message = RocketMQUtil.convertToRocketMessage(new StringMessageConverter(),"UTF-8",destination, msg);
        String tags = message.getTags();
        if(StringUtils.contains(tags,"TAGA")){
            return RocketMQLocalTransactionState.COMMIT;
        }else if(StringUtils.contains(tags,"TAGB")){
            return RocketMQLocalTransactionState.ROLLBACK;
        }else{
            return RocketMQLocalTransactionState.UNKNOWN;
        }
    }
    // 延迟检查的时间间隔要有点奇怪。
    @Override
    public RocketMQLocalTransactionState checkLocalTransaction(Message msg) {
        System.out.println("会查" + msg);
        String transId = msg.getHeaders().get(RocketMQHeaders.PREFIX+RocketMQHeaders.TRANSACTION_ID).toString();
        Message originalMessage = localTrans.get(transId);
        // 这里能够获取到自定义的transaction_id属性
        System.out.println("执行消息回查" + originalMessage);
        // 获取标签时，自定义的RocketMQHeaders.TAGS拿不到，但是框架会封装成一个带RocketMQHeaders.PREFIX的属性
        String tags = msg.getHeaders().get(RocketMQHeaders.PREFIX+RocketMQHeaders.TAGS).toString();
        if(StringUtils.contains(tags,"TAGC")){
            return RocketMQLocalTransactionState.COMMIT;
        }else if(StringUtils.contains(tags,"TAGD")){
            return RocketMQLocalTransactionState.ROLLBACK;
        }else{
            return RocketMQLocalTransactionState.UNKNOWN;
        }
    }
}

消费者

@Component
@RocketMQMessageListener(consumerGroup = "bootConsumer", topic = "bootTopic", consumeMode = ConsumeMode.CONCURRENTLY)
public class TestConsumer implements RocketMQListener {
    @Override
    public void onMessage(Object o) {
        System.out.println(o);
    }
}

额外的RocketMQTemplate

@ExtRocketMQTemplateConfiguration(nameServer = "${rocketmq.extNameServer}")
public class ExtRocketMQTemplate extends RocketMQTemplate {

@Resource(name="extRocketMQTemplate")
private ExtRocketMQTemplate extRocketMQTemplate;

RocketMQ

Kafka

2023-06-02 MQ

Kafka

MySQL分片

2023-05-27 MySQL

MySQL
